Page 6 - Jarlin Measuring Guide
P. 6

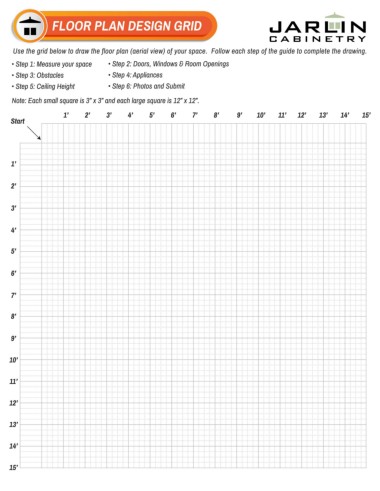

FLOOR PLAN DESIGN GRID
Use the grid below to draw the floor plan (aerial view) of your space. Follow each step of the guide to complete the drawing.
• Step 1: Measure your space • Step 2: Doors, Windows & Room Openings
• Step 3: Obstacles • Step 4: Appliances
• Step 5: Ceiling Height • Step 6: Photos and Submit
Note: Each small square is 3” x 3” and each large square is 12” x 12”.
1’ 2’ 3’ 4’ 5’ 6’ 7’ 8’ 9’ 10’ 11’ 12’ 13’ 14’ 15’
Start
1’
2’
3’
4’
5’
6’
7’
8’
9’
10’
11’
12’
13’
14’
15’
